Structured cabling is the organised framework of copper and fibre cabling, patching and hardware that delivers reliable network connectivity across an office, supporting data, voice and AV services with predictable performance. This guide explains what structured cabling is, why it matters for corporate offices, and how the right design reduces downtime while enabling scalability for cloud services, VoIP, video conferencing and Power over Ethernet cabling. Many businesses struggle with ad-hoc cabling that causes inefficient troubleshooting, unpredictable upgrades and constrained bandwidth; structured cabling solves those problems through standardised components, clear labelling and tested topologies. You will learn core components and standards, the main business and technical benefits, a practical comparison of cable types including Cat6a installation and fibre optic options, plus a step-by-step planning and installation checklist that covers testing and certification. The article also links structured cabling to smart-office trends such as IoT and AV-over-IP, and outlines how a professional provider can deliver comms cabinet solutions and certified installation while keeping future-proofing and cost-effectiveness front of mind.
What is Structured Cabling and Why is it Essential for Modern Offices?

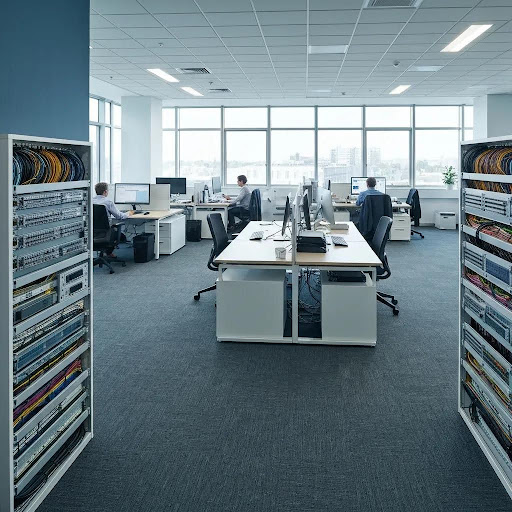

Structured cabling is a standardised approach to building a cabling infrastructure that organises horizontal cabling, backbone links, patch panels and telecommunications rooms to deliver consistent network performance and simplified management. The mechanism is modular design, work-area outlets connect via horizontal cabling to patch panels in racks, which in turn connect over backbone fibres or copper to distribution equipment, delivering predictable latency and simplified fault isolation. The specific benefit is predictable scalability: new devices, switches and AV endpoints can be added or reconfigured quickly without disruptive rewiring, which saves time and reduces operational risk. Understanding these basics prepares an office to support demanding applications such as 10Gb Ethernet, PoE-powered devices and unified communications.
What Defines Structured Cabling? Core Components and System Overview
Structured cabling is made of several interlocking components that each serve a clear role in a network. Horizontal cabling runs from the telecommunications room to individual work-area outlets and typically uses copper categories like Cat6a for 10Gb performance, while backbone cabling links telecom rooms and may use multi-mode or single-mode fibre for long-distance, high-bandwidth needs. Patch panels and modular jacks provide the modular interface for moves/adds/changes, and racks or comms cabinets organise active equipment and enable proper cable management. Proper labelling, labelling standards and documentation complete the system so that a network switch or AV endpoint can be identified and serviced quickly. This component breakdown leads naturally into how structured cabling differs from traditional ad-hoc approaches.
How Does Structured Cabling Differ from Traditional Cabling?
Structured cabling differs from conventional point-to-point or patchy wiring by emphasising standardisation, documentation and modularity, which reduces complexity and maintenance overhead. Traditional cabling often grows in an unplanned way, with mismatched cable types and undocumented splices that make troubleshooting slow and upgrades costly, while structured cabling enforces consistent cable categories, clear labelling and standard pathways. The predictable topology of structured systems simplifies moves, adds and changes: technicians can isolate faults at patch panels or test points rather than tracing ad-hoc runs through ceilings. This organised approach reduces mean time to repair and supports compliance with standards such as TIA/EIA-568 and ISO/IEC cabling guidelines.
What Are the Key Benefits of Structured Cabling for Business Networks?
Structured cabling delivers measurable business value through increased scalability, higher reliability, lower lifecycle costs and improved readiness for emerging technologies. The mechanism is standardised infrastructure and certified installation that translate into faster reconfiguration, fewer network faults and longer useful life for network investments. Companies experience reduced downtime and faster recovery when issues arise because standard test points and documentation speed diagnostics, and businesses can plan capacity growth without wholesale rewiring. Recognising these technical and commercial benefits helps justify investment decisions and enables IT teams to present clear KPIs to leadership.
Structured cabling yields several primary benefits:
- Scalability and Flexibility: Modular patching and extra-capacity design speed expansion and moves.
- Improved Reliability: Certified cabling and organised pathways reduce faults and improve uptime.
- Cost-Effectiveness Over Time: Lower labour costs for moves/adds and longer infrastructure lifespan reduce TCO.
- Future-Proofing: Support for higher bandwidth and PoE reduces the need for disruptive upgrades.
These benefits connect directly to measurable outcomes such as reduced mean time to repair, faster deployment of new endpoints and lower operational expenditure, which invites practical selection and planning.
Intro to benefits table: The table below maps core benefits to concrete outcomes and KPIs to help decision-makers evaluate structured cabling investments.
| Benefit | Outcome | KPI / Impact |
| Scalability | Quicker adds, moves, changes | Port provisioning time reduced by 50% |
| Reliability | Fewer faults and predictable performance | Decreased downtime incidents per year |
| Cost-effectiveness | Lower long-term labour and rework costs | Reduced TCO over 5–10 years |
| Future-proofing | Supports higher bandwidth and PoE | Longer interval between major upgrades |
This mapping makes clear how structured cabling translates into operational and financial improvements for offices, and it sets up the next section on selecting cable types for those objectives.
Note on practical support: For organisations aiming to realise these benefits quickly, Genconnect Technologies offers cabling services including Comms Cabinet Solutions, Data Cabling and Electrical Cabling with an emphasis on transparent processes and scalable infrastructure that improve network efficiency. Contacting a professional provider can help translate benefit-led planning into a site-specific specification and quotation.
What Types of Structured Cabling Systems Are Best Suited for Office Environments?
Choosing between copper categories and fibre depends on bandwidth needs, distance and budget; the right approach often combines copper for work-area cabling and fibre for backbones. Copper such as Cat6a is widely recommended for 10Gb Ethernet up to 100 metres, while higher-category copper and fibre serve specialist scenarios requiring greater shielding, reduced EMI or longer runs. Hybrid architectures use fibre backbones between telecom rooms and copper to work areas to balance cost and performance, and planning should consider PoE needs and expected device density when selecting categories. Practical selection requires comparing speed, distance limits and cost implications to match long-term business goals.

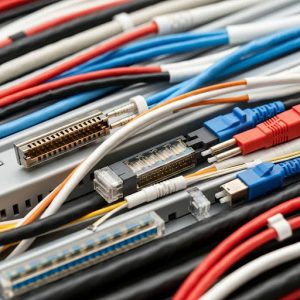

When Should You Choose Copper Cabling? Comparing Cat5e, Cat6, Cat6a, Cat7, and Cat8
Copper cabling remains the most cost-effective choice for typical office work-area connections, with clear trade-offs by category. Cat5e supports gigabit Ethernet effectively for lower-cost deployments, Cat6 extends margin for higher performance, and Cat6a is recommended for reliable 10Gb performance up to 100 metres while offering better alien crosstalk immunity, making Cat6a installation a pragmatic standard for future-proofed offices. Cat7 and Cat8 offer higher shielding and bandwidth but come at significantly higher material and termination costs and are usually reserved for specialised environments. Choosing the right copper category optimises both initial outlay and lifecycle flexibility.
Intro to comparison list: The following list summarises typical use-cases for common copper categories to guide selection.
- Cat5e: Suitable for cost-sensitive gigabit networks with short runs.
- Cat6: Appropriate where slight headroom above gigabit is desired.
- Cat6a: Recommended for offices adopting 10Gb Ethernet and PoE++ devices.
Summary: For most modern offices planning 10Gb-ready networks and PoE expansion, Cat6a provides the best balance of performance, shielding and cost.
Intro to cable comparison table: The table below compares representative cable types across key characteristics to assist technical selection.
| Cable Type | Characteristic | Typical Application |
| Cat5e | Unshielded or shielded, up to 1Gb at 100m | Basic office LAN ports |
| Cat6a | Improved shielding, 10Gb at 100m | Future-proofed work-area cabling |
| Cat8 | Shielded, high frequency, short-range 25/40Gb | Data centre or switch-to-switch links |
| Multi-mode fibre | High bandwidth, moderate distance | Building backbone, telecom room links |
| Single-mode fibre | Very long distance, highest bandwidth | Inter-building or campus backbone |
This comparative view clarifies when each cable type is appropriate and supports planning decisions that balance current needs with future growth.
What Are the Advantages of Fibre Optic Cabling for High-Performance Offices?
Fibre optic cabling provides superior bandwidth, long-distance transmission and immunity to electromagnetic interference, making it ideal for backbone and inter-building connections. Multi-mode fibre commonly serves in-building backbones where high throughput is needed over moderate distances, while single-mode fibre is the choice for very long runs or future high-capacity needs. Fibre enables centralised data centre architectures and reduces the number of intermediate switches required, which simplifies management and improves latency for bandwidth-hungry applications. For offices expecting rapid growth in cloud usage, AV-over-IP and high-density PoE, planning a fibre-capable backbone preserves investment value.
How Do Hybrid Structured Cabling Solutions Combine Copper and Fibre Optics?
Hybrid solutions typically use fibre for backbone links between telecommunications rooms and copper (Cat6a or similar) for work-area horizontal cabling, providing a cost-effective mix of performance and flexibility. Transceivers, patching panels and comms cabinet solutions facilitate conversion points so that switches and servers connect across media seamlessly. A gradual migration strategy might replace backbone copper with fibre first to relieve congestion and add 10Gb links to key floors before upgrading all work-area cabling. This balanced topology supports both immediate budget constraints and longer-term bandwidth planning.
How to Plan and Install Structured Cabling for Your Corporate Office?
Effective planning and installation follow a clear sequence: site survey, design and capacity planning, professional installation with comms cabinet organisation, and comprehensive testing and certification. The mechanism is a standards-based workflow that captures current and projected device counts, PoE power budgets, and room layouts to size backbone and horizontal cabling correctly. The result is a documented, tested infrastructure that reduces risk during moves, adds and changes and that supports unified communications and AV systems without repeated rewiring. Below are practical best-practice steps followed by a checklist table that maps responsibilities to verification outcomes.
Key planning and installation steps:
- Site survey and requirements capture: Record device counts, room uses and growth forecasts.
- System design and capacity planning: Specify cable categories, backbone topology and comms cabinet locations.
- Professional installation and certification: Use certified installers and formal testing to guarantee performance.
Summary: Following these steps ensures an installation that meets standards and delivers predictable, testable network performance.
Intro to installation checklist table: The table below outlines essential installation steps with responsible roles and required verification to prepare for certification.
| Installation Step | Responsible Role | Verification / Test Result |
| Site survey & documentation | Project engineer / IT lead | Survey report with device counts and rack locations |
| Cable installation & routing | Certified installer | Visual inspection and proper cable management |
| Testing & certification | Test technician | Certification reports (pair tests, insertion loss, NEXT, return loss) |
This checklist clarifies roles and the verification needed to achieve a certified installation that meets performance goals.
What Are the Best Practices for Structured Cabling Design and Planning?
Good design anticipates growth by allocating spare ports, specifying backbone headroom and separating services to minimise interference, which reduces future disruption and cost. Capacity planning should include PoE power budgeting and consideration for dense IoT endpoints or AV streaming demands so that switches and power distribution are sized appropriately. Routing best practices separate power and data conduits, use dedicated cable trays and avoid tight bends to preserve cable performance. Proper documentation and labelling conventions make ongoing management and troubleshooting efficient, which in turn accelerates recovery from incidents.
Why Is Professional Installation and Certification Critical for Structured Cabling?
Professional installation ensures that terminations, bending radii and pathway choices meet category specifications, while certification testing provides documented proof of performance required to support service-level expectations. Testers verify pair continuity, NEXT/PSNEXT, return loss and insertion loss where applicable and create reports that serve as baseline documentation for future upgrades or warranty claims. Compliance with recognised standards reduces the risk of intermittent faults and helps guarantee that the installed cabling will support expected applications. Because certified testing underpins predictable operation, it is a non-negotiable step for business-critical networks.
Note on professional services: Genconnect Technologies provides professional installation, testing and comms cabinet solutions as examples of how a certified workflow is executed in practice; clients can request a site survey to translate requirements into a certified design and quotation.
How Should Cable Routing, Labelling, and Management Be Handled?
Consistent routing through dedicated trays and clear labelling of both ends of every cable improves maintainability and dramatically shortens troubleshooting time. Labelling conventions should include port, patch panel and rack identifiers, and documentation should be maintained in a central record that maps physical ports to logical network endpoints. Good cable management keeps spare capacity accessible and uses Velcro ties, vertical managers and labelled patch leads to preserve airflow and serviceability in comms cabinets. Regular maintenance audits of documentation and physical routes prevent drift from the original design and sustain long-term network reliability.
How Can Structured Cabling Support Modern Office Technologies and Smart Workplaces?
Structured cabling provides the foundation for unified communications, high-quality video conferencing and scalable cloud access by guaranteeing the bandwidth, latency and reliability those services require. Properly specified cabling reduces jitter and packet loss for VoIP and UC platforms, while sufficient headroom supports video streams and AV-over-IP deployments without saturating links. The same cabling that carries data can deliver Power over Ethernet cabling for cameras, access control and wireless APs, but that requires careful power budgeting and appropriate cable categories. Understanding how cabling intersects with modern services helps IT teams design resilient, converged infrastructures.
How Does Structured Cabling Enable VoIP, Video Conferencing, and Cloud Services?
Structured cabling supports unified communications by delivering consistent bandwidth and low latency to endpoints and meeting QoS expectations set by UC platforms. Video conferencing and cloud-hosted applications are sensitive to packet loss and jitter, so cabling that minimises crosstalk and maintains headroom prevents performance degradation under load. Segmenting traffic, provisioning adequate uplink bandwidth and testing end-to-end performance ensures that UC, collaboration tools and cloud backups run reliably. This technical groundwork enables predictable user experiences for critical communication workflows.
List of network elements to consider when enabling UC and cloud services:
- Bandwidth provisioning: Ensure uplinks match expected concurrent video streams.
- QoS and segmentation: Prioritise voice and video traffic to reduce latency.
- End-to-end testing: Validate performance from endpoint to cloud services.
Summary: When cabling and network design align, modern communication services deliver consistent, enterprise-grade performance.
What Role Does Power over Ethernet Play in Structured Cabling Systems?
Power over Ethernet (PoE) allows data cables to deliver both power and connectivity to devices such as IP phones, cameras and Wi-Fi access points, reducing separate power cabling and easing deployment. Planning for PoE requires calculating a power budget per switch, choosing cable categories that limit power loss (Cat6a is preferable for high-wattage PoE++ devices) and installing sufficient power-capacity switches or midspan injectors where needed. High-wattage PoE deployments may also influence conduit sizing and heat dissipation in comms cabinets, so integrate electrical and cabling planning early. Careful PoE planning enables the rapid roll-out of smart office devices without compromising network reliability.
How Is Structured Cabling Integrated with IoT and Smart Office Systems?
IoT and smart-office deployments often introduce dense endpoint counts and mixed-criticality systems that require deliberate segregation and capacity planning, such as separate VLANs for building automation versus corporate computing. Structured cabling can provision additional pathways and spare ports to accommodate many low-bandwidth sensors while reserving high-performance links for cameras and AV systems. Logical network design, labelling and documentation are essential to maintain security boundaries and simplify maintenance for access control and building automation. Planning for a high number of endpoints during cabling design prevents expensive retrofits and supports a scalable smart workplace.
Why Choose Genconnect Technologies for Your Office Structured Cabling Needs?
Genconnect Technologies specialises in delivering practical cabling outcomes for Australian businesses through services that include Comms Cabinet Solutions, Data Cabling and Electrical Cabling, backed by a customer-focused approach that simplifies technology deployment. Their value proposition emphasises transparent processes and professional installation to drive business growth by improving network efficiency and scalability, helping organisations move from fragmented cabling to a certified, maintainable infrastructure. The company positions its work around clear communication, outstanding results and future-proofing, with capabilities that address comms cabinet organisation, cable management and certified testing workflows.
What Expertise and Services Does Genconnect Offer in Structured Cabling?
Genconnect provides end-to-end cabling services that map to the essential phases of a structured cabling project: site survey and needs assessment, design and comms cabinet planning, professional installation of copper and fibre, and testing/certification to standards. Practical examples of services include configuring comms cabinet solutions to house switches and patching, installing Cat6a horizontal cabling for work areas and deploying backbone fibre where needed. Genconnect’s approach emphasises clear documentation and customer communication throughout the project, which helps ensure predictable outcomes and easier handover to in-house IT teams.
How Has Genconnect Improved Network Efficiency for Australian Businesses?
Genconnect frames project success around measurable improvements such as reduced downtime from organised patching, faster moves/adds/changes and better network performance through appropriate cable selection and certification. By delivering scalable cabling and robust comms cabinet solutions, the company helps businesses avoid repeated rework and supports growth planning for IoT, PoE and AV convergence. Organisations seeking local case studies or tailored quotations are encouraged to request a consultation or site survey to translate these high-level outcomes into an implementation plan suited to their premises and objectives.
- Service focus: Comms Cabinet Solutions, Data Cabling, Electrical Cabling.
- Customer promise: Transparent processes, professional installation and exceptional customer service.
- Action: Request a consultation or site survey to assess readiness and obtain a tailored quote.
This commercial overview remains concise so topic education dominates while offering a clear path for readers who want professional assistance.
